Toolkit

For firmware programming and functional testing during mass production of chips and modules, we have developed dedicated manual and automatic programming tools. The manual programming solution supports firmware programming and basic functional verification for multiple chip models. The automatic programming solution combines a equipment adapter board with an offline programmer board , It is suitable for large-scale mass production, fully covering programming needs from R&D verification to mass production.

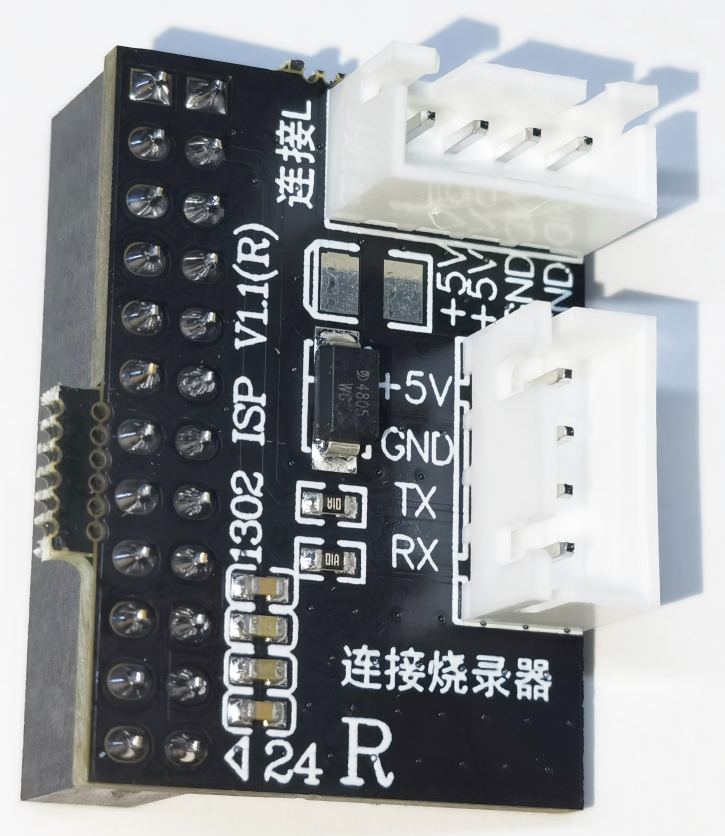

Equipment Adapter Board

Programmer User Manual

Automatic programming chip firmware

Supports chips packaged in SOP8, SOP16, and SSOP24, and can be mass-produced with an offline Programmer tool .

Tool Name	Description	Compatible Chip

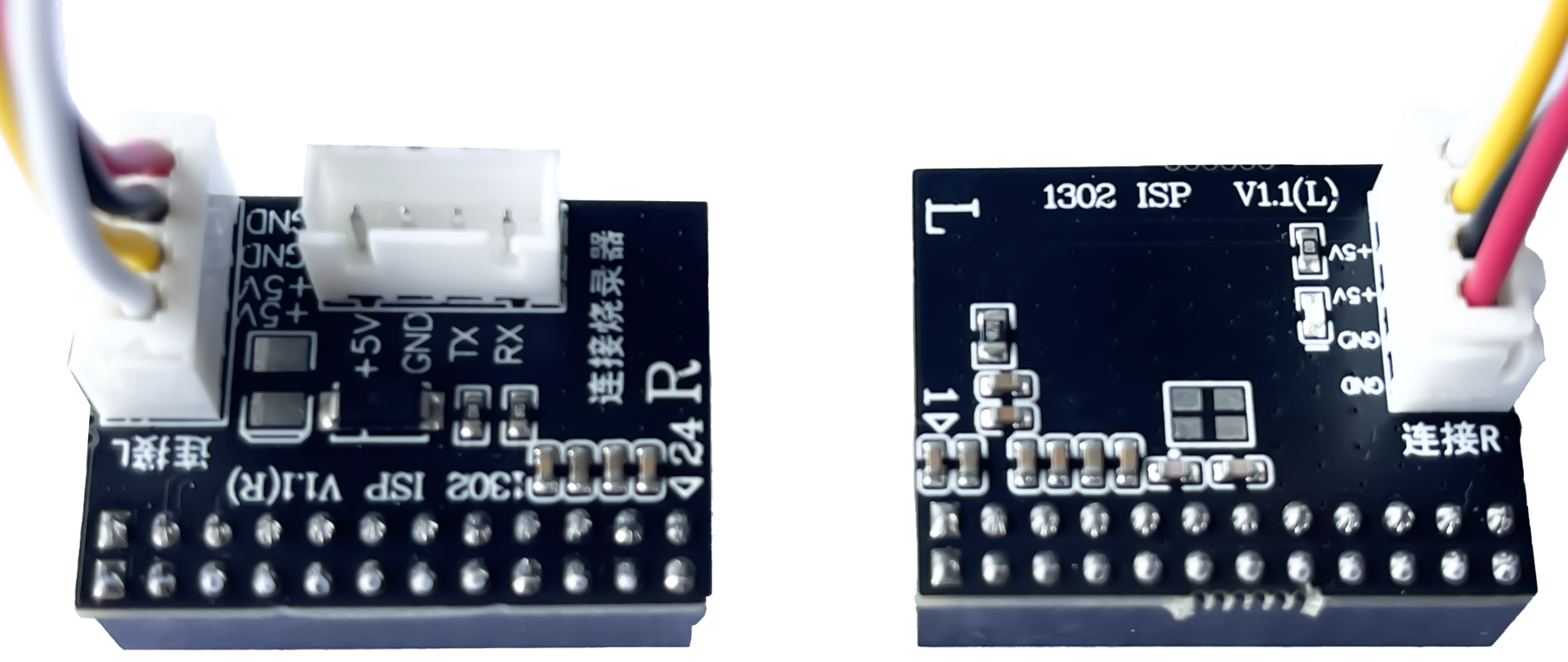

CI130X Burn-in Adapter Board	Dedicated adapter board for CI130X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI1302 CI1303
CI131X Burn-in Adapter Board	Dedicated adapter board for CI131X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI1312
CI13082V Burn-in Adapter Board	Dedicated adapter board for CI13082V,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13082V
CI1316X Burn-in Adapter Board	Dedicated adapter board for CI1316X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13162
CI1316XP Burn-in Adapter Board	Dedicated adapter board for CI13162P,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13162P
CI1324X Burn-in Adapter Board	Dedicated adapter board for CI1324X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI13242
CI2316X Burn-in Adapter Board	Dedicated adapter board for CI2316X series,consists of left and right boards with power capacitors and crystal oscillator. Forms a firmware programming system with the chip,enabling mass production programming when used with offline programmers.	CI23162

Programmer Board

Programmer User Manual

Manually programming chip firmware

Support manual programming of chips packaged in SOP8, SOP16, and SSOP24.

Tool Name	Description	Compatible Chip
CI130X Offline Programmer	1. Offline programmer for CI130X series,supports programming CI1302 and CI1303 chips;2. Primarily for programming,with basic functionality verification after programming;3. Powered by USB 5V Type-C,onboard UART.	CI1302 CI1303
CI131X Offline Programmer	1. Supports programming CI1312 chip;2. Primarily for programming with basic functionality verification after programming;3. Powered by USB 5V Type-C,onboard UART.	CI1312
CI13082V Offline Programmer	1. Supports programming CI13082V chip;2. Primarily for programming with basic functionality verification after programming;3. Powered by USB 5V Type-C,onboard UART.	CI13082V
CI2316X Offline Programmer	1. Supports programming CI23162 chip;2. Primarily for programming with basic functionality verification after programming;3. Powered by USB 5V Type-C,onboard UART.	CI23162

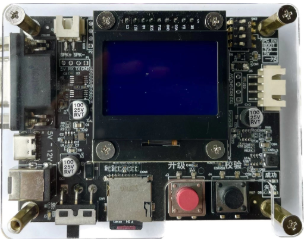

Programmer Tool

Programmer User Manual

Offline programmer tool

Cooperate with offline programmer board or equipment adapter board to achieve manual chip firmware programming or automatic chip firmware programming.

Tool Image	Tool Name	Buy	Description	Compatible Chip
	Offline Programmer		1. The offline programmer is specifically developed for programming Chipintelli voice chips,supporting all models of voice chips.2. Chip programming supports two modes: manual programming and automated machine programming. Users can choose based on their needs. Manual programming requires purchasing our offline programming board or voice module. Machine programming requires purchasing our dedicated model adapter board.	CI1302 CI1303 CI1306 CI1312 CI13082V CI13162 CI13162P CI13242 CI13322 CI23162 CI23242

Tool Image

Tool Name

Buy

Description

Compatible Chip

Offline Programmer

1. The offline programmer is specifically developed for programming Chipintelli voice chips,supporting all models of voice chips.2. Chip programming supports two modes: manual programming and automated machine programming. Users can choose based on their needs. Manual programming requires purchasing our offline programming board or voice module. Machine programming requires purchasing our dedicated model adapter board.

Production Test Equipment

Test Fixture User Manual

Automatic programming and testing module firmware

Our company has developed a dedicated automation test fixture for firmware programming and functional testing during module mass production. Users can also develop test fixture for use according to the manual methods.

Tool Image	Tool Name	Buy	Description	Compatible Chip

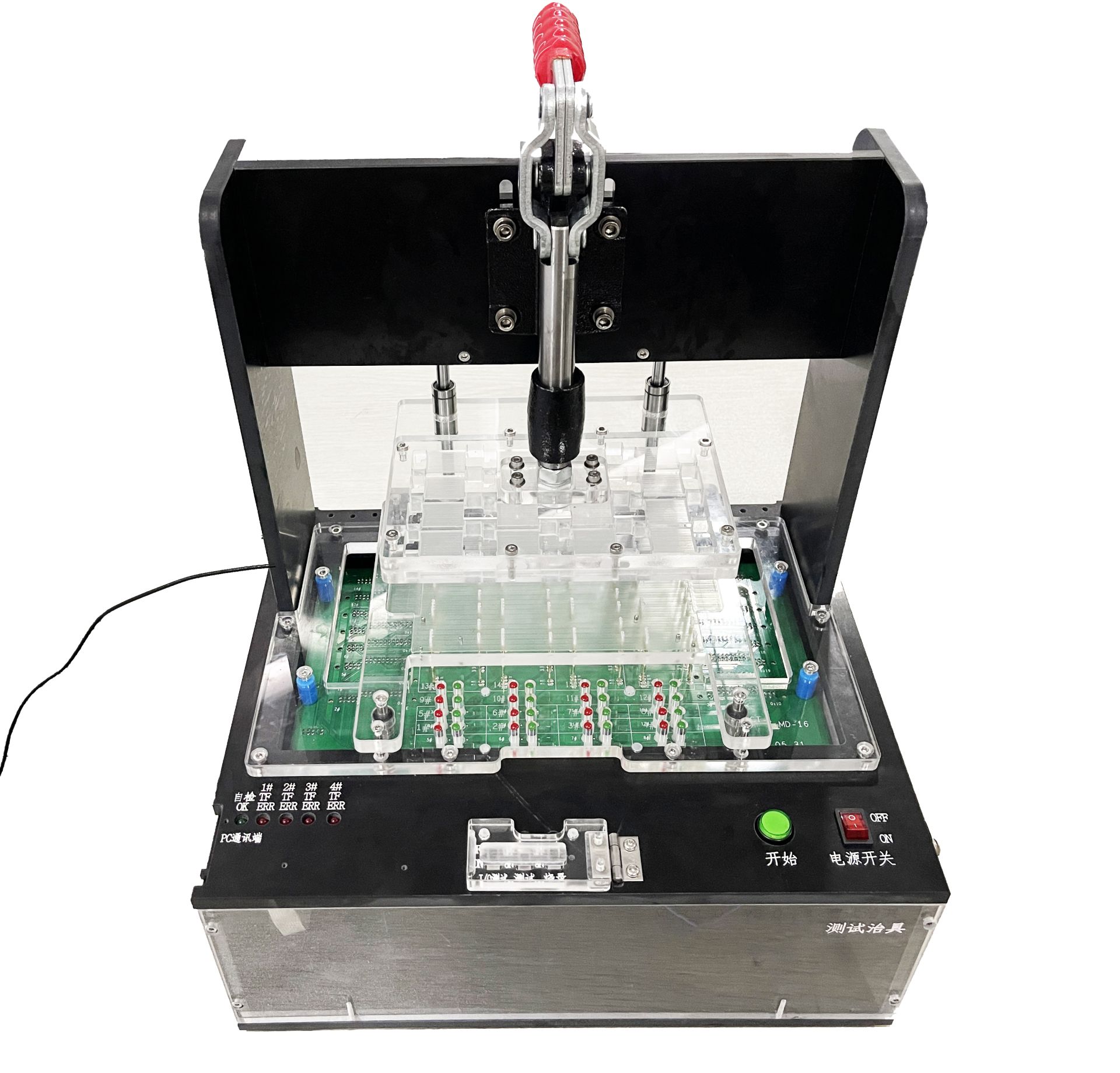

	Test Fixture		Test fixtures are used for programming and testing voice modules. We have developed corresponding fixtures for different standard modules. Users can also develop custom fixtures according to the manual. The fixture enables automated programming and testing in one go,improving production efficiency while ensuring all functions of the voice module (including electrical functions,voice recognition,and voice broadcast) work properly. For purchasing fixtures,please contact our business team at support@chipintelli.com.	CI1302 CI1303 CI1306 CI1312 CI13082V CI13162 CI13162P CI13242 CI13322 CI23162 CI23242

Tool Image

Tool Name

Buy

Description

Compatible Chip

Test Fixture

Test fixtures are used for programming and testing voice modules. We have developed corresponding fixtures for different standard modules. Users can also develop custom fixtures according to the manual. The fixture enables automated programming and testing in one go,improving production efficiency while ensuring all functions of the voice module (including electrical functions,voice recognition,and voice broadcast) work properly. For purchasing fixtures,please contact our business team at support@chipintelli.com.
